FSA Gossamer Pro BB386 EVO ABS Cyclocross Bike Crankset 46/36T 172.5 N10/11s NEW
FSA Gossamer Pro BB386 EVO ABS Cyclocross Bike Crankset 46/36T 172.5 N10/11s NEW
Regular price
$69.97
Regular price
Sale price
$69.97
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

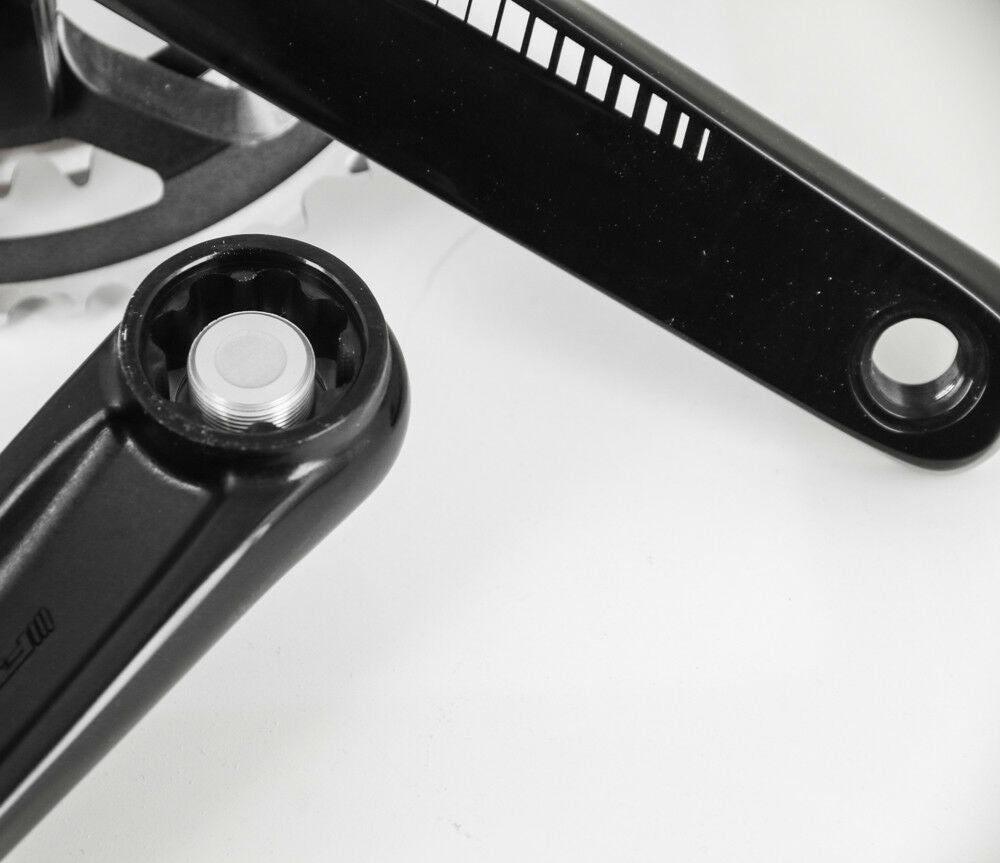

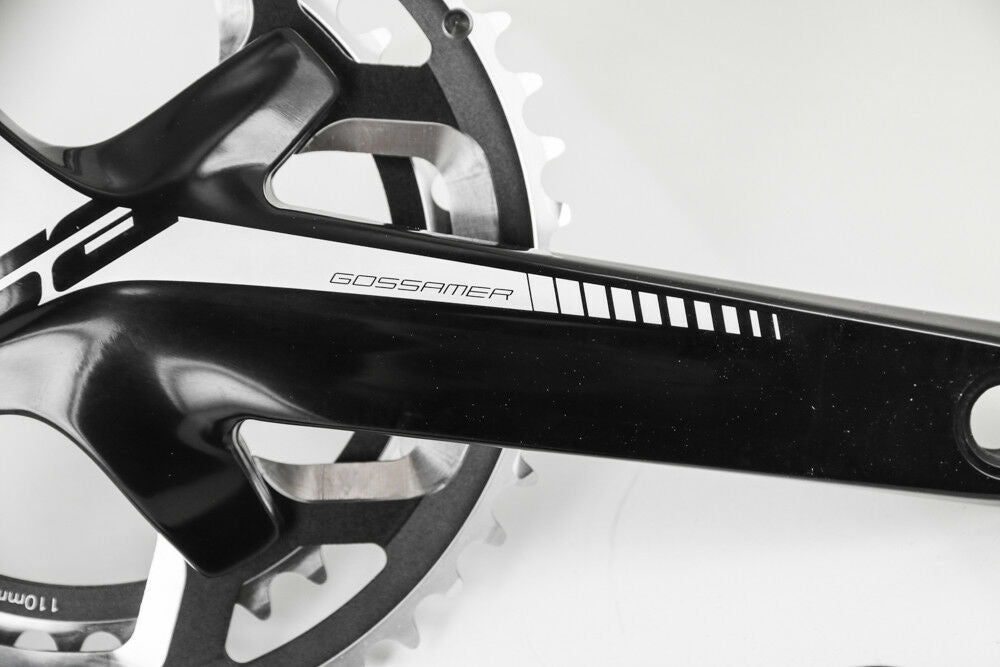

FSA GOSSAMER PRO BB386EVO CRANKSET
NEW / MSRP $192.99 / SHIPS IN 24HRS
SPECIFICATIONS:
COMPATIBILITY:
The 386 EVO platform is nearly 100% universal for all road bike frame applications - It just requires a different bottom bracket given the type of bottom bracket shell your frame has. The last 4 images show what parts are needed given your application. Please refer to chart for bottom bracket shell dimensions/types, and corresponding bottom bracket. As a reminder, the buyer is ultimately responsible for choosing the compatible bottom bracket given the crank and BB shell type. The chart shows model numbers from a year ago, there may be newer models in existence now.
Compatible bottom brackets shells:
See images for the other names given the part #. Every FSA part has a unique number and a common name. For example, a 200-3111 has a common name of BB-PF-8200. PF30 and BB30 shell types require the bearings PLUS a spacer part.
NEW / MSRP $192.99 / SHIPS IN 24HRS
SPECIFICATIONS:
- Manufacturer: FSA
- Model: Gossamer Pro ABS BB386EVO, CK-OSC6023CC/86DB
- Length: See title / Specs
- Mass: 778 grams (crank)
- Speed: 10/11s Shimano/SRAM
- Spindle type: 386EVO
- Chainrings: 46/36T

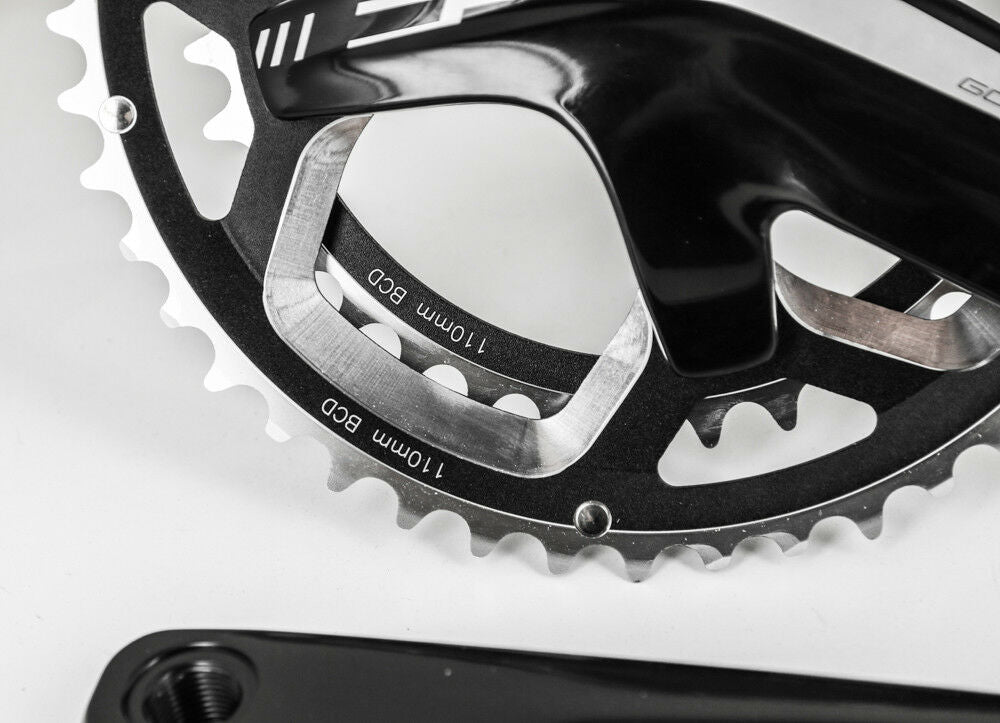

- Bolt Circle Diameter (BCD): 110mm, 4-bolt
- Does NOT include bottom bracket
- Condition: New in box
COMPATIBILITY:
The 386 EVO platform is nearly 100% universal for all road bike frame applications - It just requires a different bottom bracket given the type of bottom bracket shell your frame has. The last 4 images show what parts are needed given your application. Please refer to chart for bottom bracket shell dimensions/types, and corresponding bottom bracket. As a reminder, the buyer is ultimately responsible for choosing the compatible bottom bracket given the crank and BB shell type. The chart shows model numbers from a year ago, there may be newer models in existence now.
Compatible bottom brackets shells:
See images for the other names given the part #. Every FSA part has a unique number and a common name. For example, a 200-3111 has a common name of BB-PF-8200. PF30 and BB30 shell types require the bearings PLUS a spacer part.
Shell Type |
Shell Dimensions |
BB
Model Number (Ceramic Bearings) |
BB
Model # (Steel Bearings) |
386 EVO | 86.5mm
wide, 46mm Inner Diameter |
200-3111 |
200-3112
|
68mm
(BSA) |
68mm wide, English Threaded Inner | 200-3200 |
200-3201
|
BB30 |
68mm wide, 42mm Inner Diameter | 200-3000
+ 200-3204 |
200-3001
+ 200-3204 |
PF30 |
68mm
wide, 46mm Inner Diameter |
200-3111
+ 200-3204 |
200-3112
+ 200-3204 |
Cannondale
BB30A |
73mm
wide, 42mm Inner Diameter |
200-3000
+ 200-0005000330 |
200-3001 + 200-0005000330 |
BBright
PF30 |
79mm
wide, 46mm Inner Diameter |
200-3111
+ 200-0010000110 |
200-3112 + 200-0010000110 |
Pressfit
BB86 |
86.5mm
wide, 41mm Inner Diameter |
- |
200-3216 |
