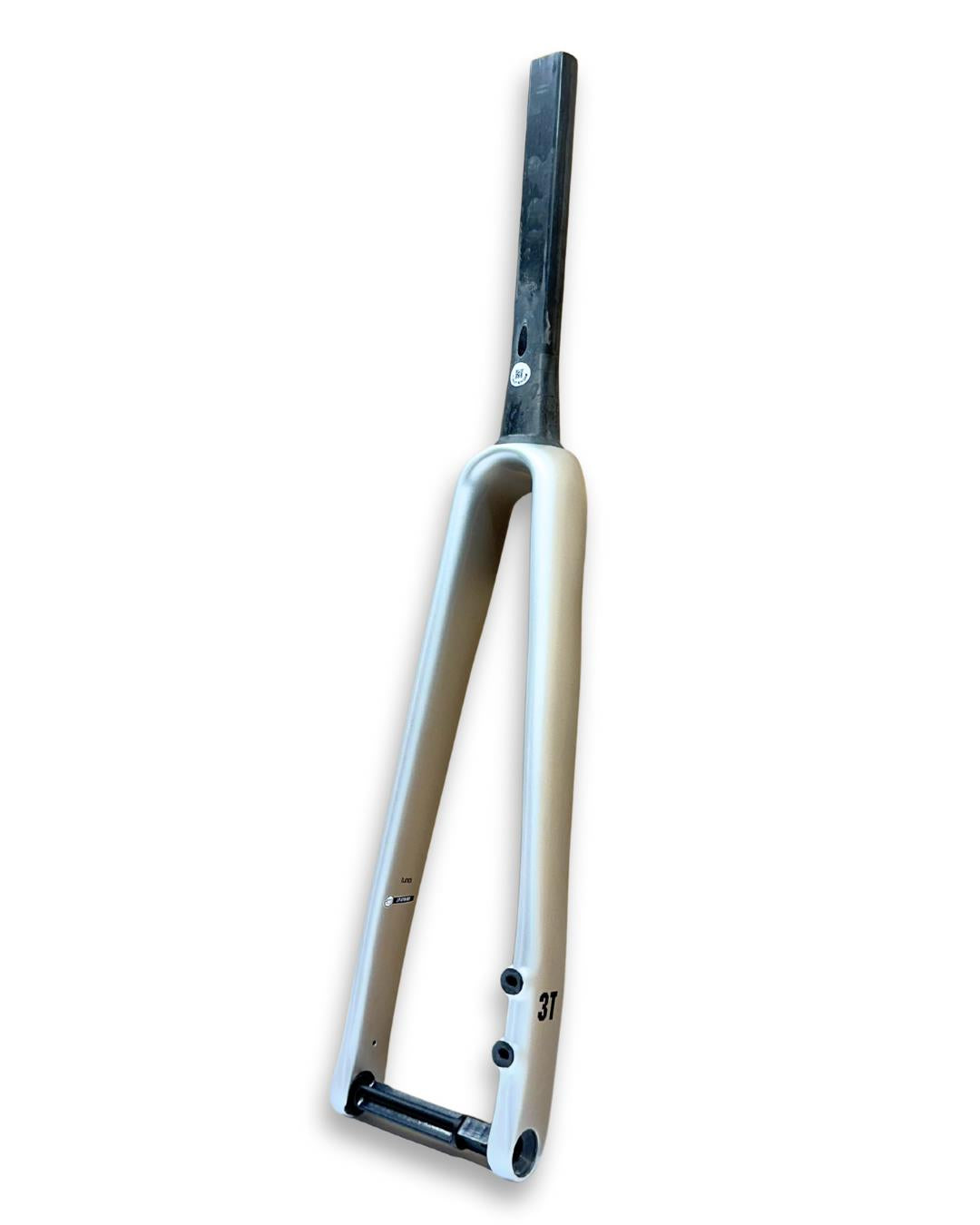

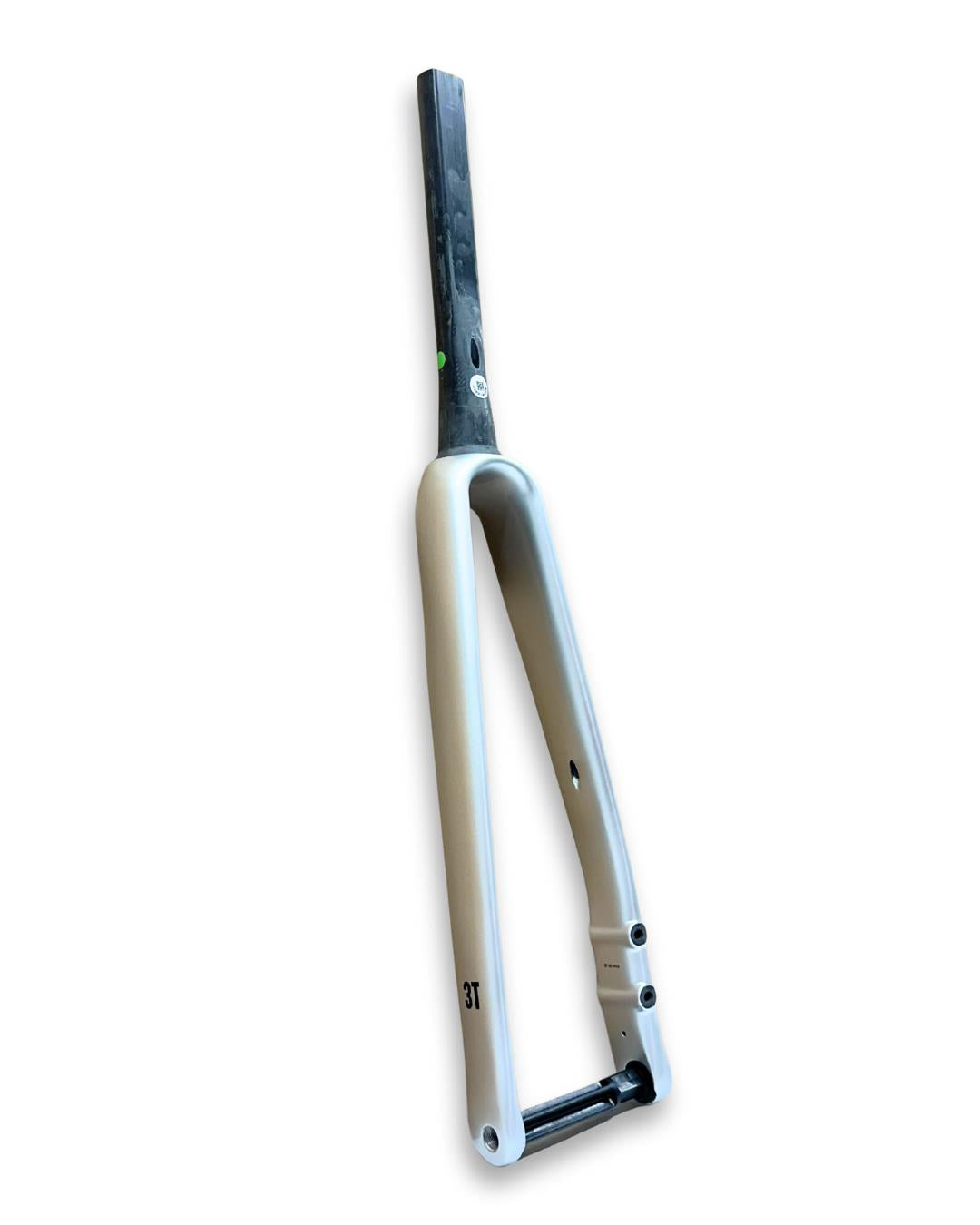

3T Fundi Integrale Aero Carbon Road Bike Fork – Disc, Chrome

3T Fundi Integrale Carbon Road Bike Fork, 49mm Rake, 360mm A-C, 700c Chrome Disc

The 3T Fundi Integrale is an advanced aero carbon fork designed for 3T’s Strada and Racemax Integrale frames. Built for full internal routing and modern disc-brake road setups, it combines sleek integration with exceptional stiffness and control.

This fork uses a front-flat “D-shaped” tapered steerer (1⅛″–1½″), engineered for aerodynamic cockpit systems where brake hoses route internally through the headset and stem. Inside the steerer, a bonded alloy insert provides a threaded anchor for the top-cap compression bolt — part of 3T’s internal headset design.

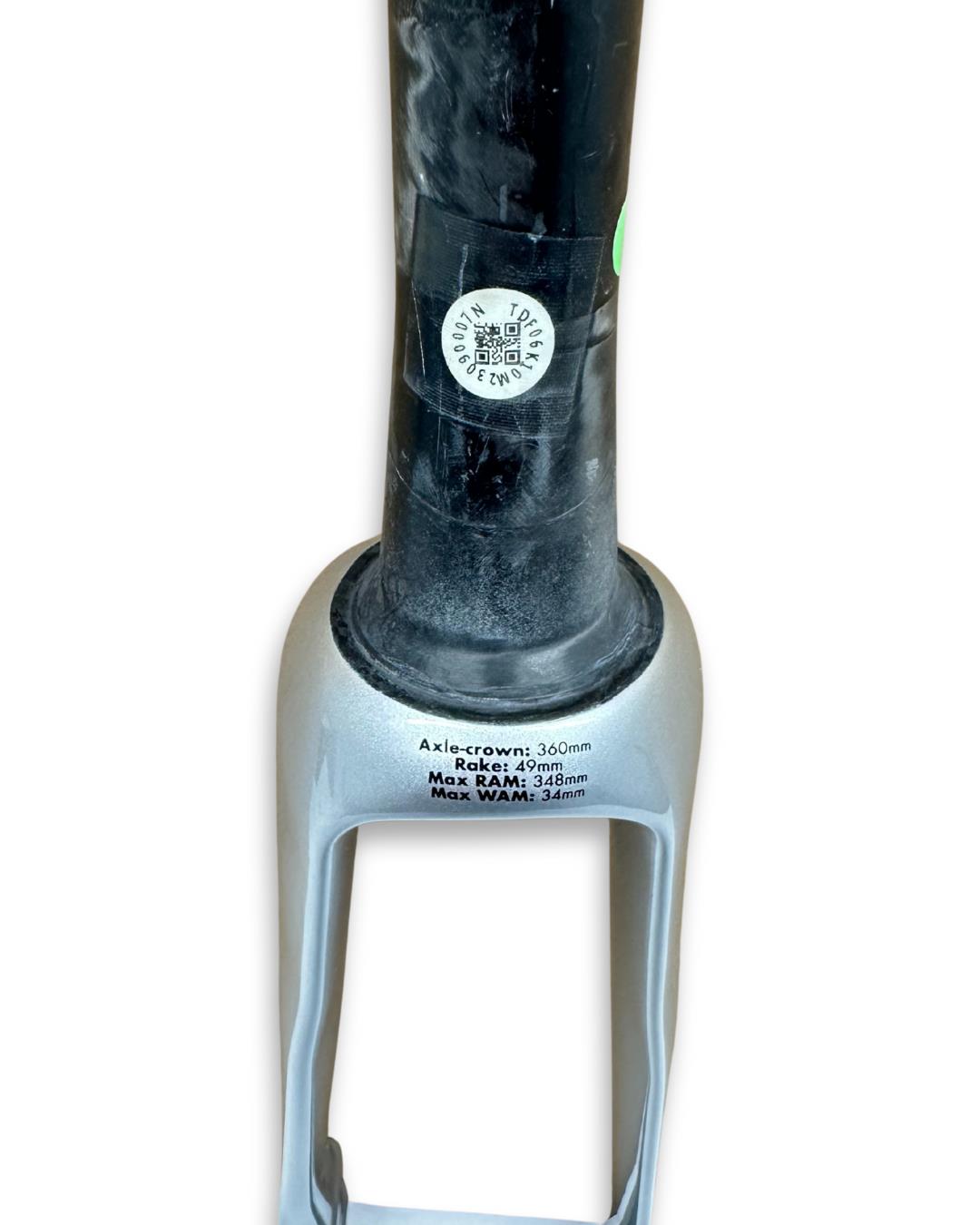

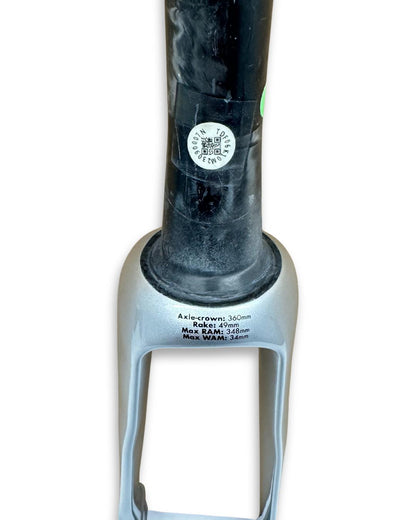

Weighing only 420 g, the Fundi Integrale features a 360 mm axle-to-crown length and 49 mm rake, delivering precise handling and efficient steering response for high-performance road bikes.

Key Features:

• Model: 3T Fundi Integrale Carbon Fork – Chrome (Size 56)

• Material: Full carbon fiber construction

• Weight: 420 g

• Axle-to-Crown: 360 mm

• Rake (Offset): 49 mm

• Brake Mount: Flat-mount disc, max 160 mm rotor

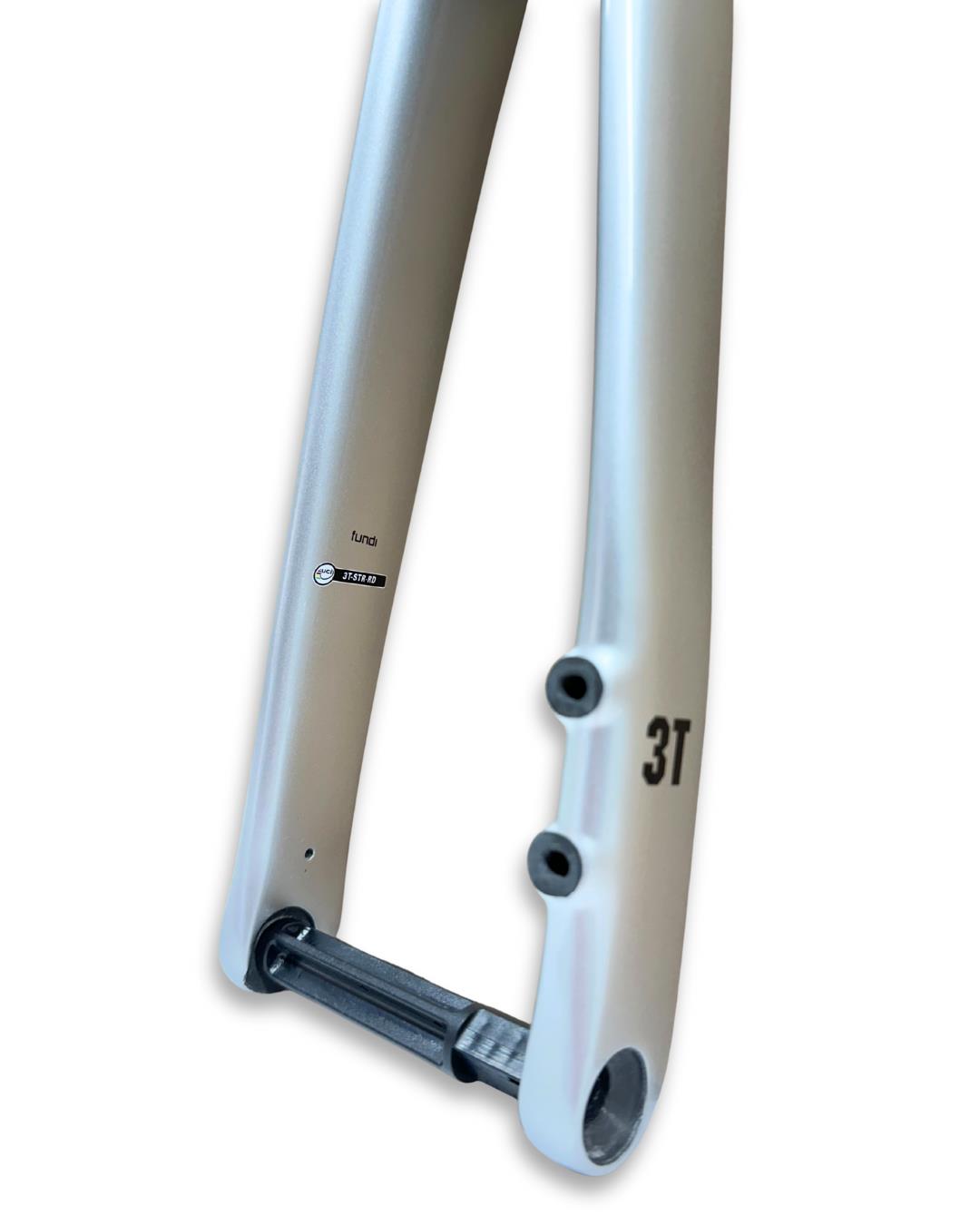

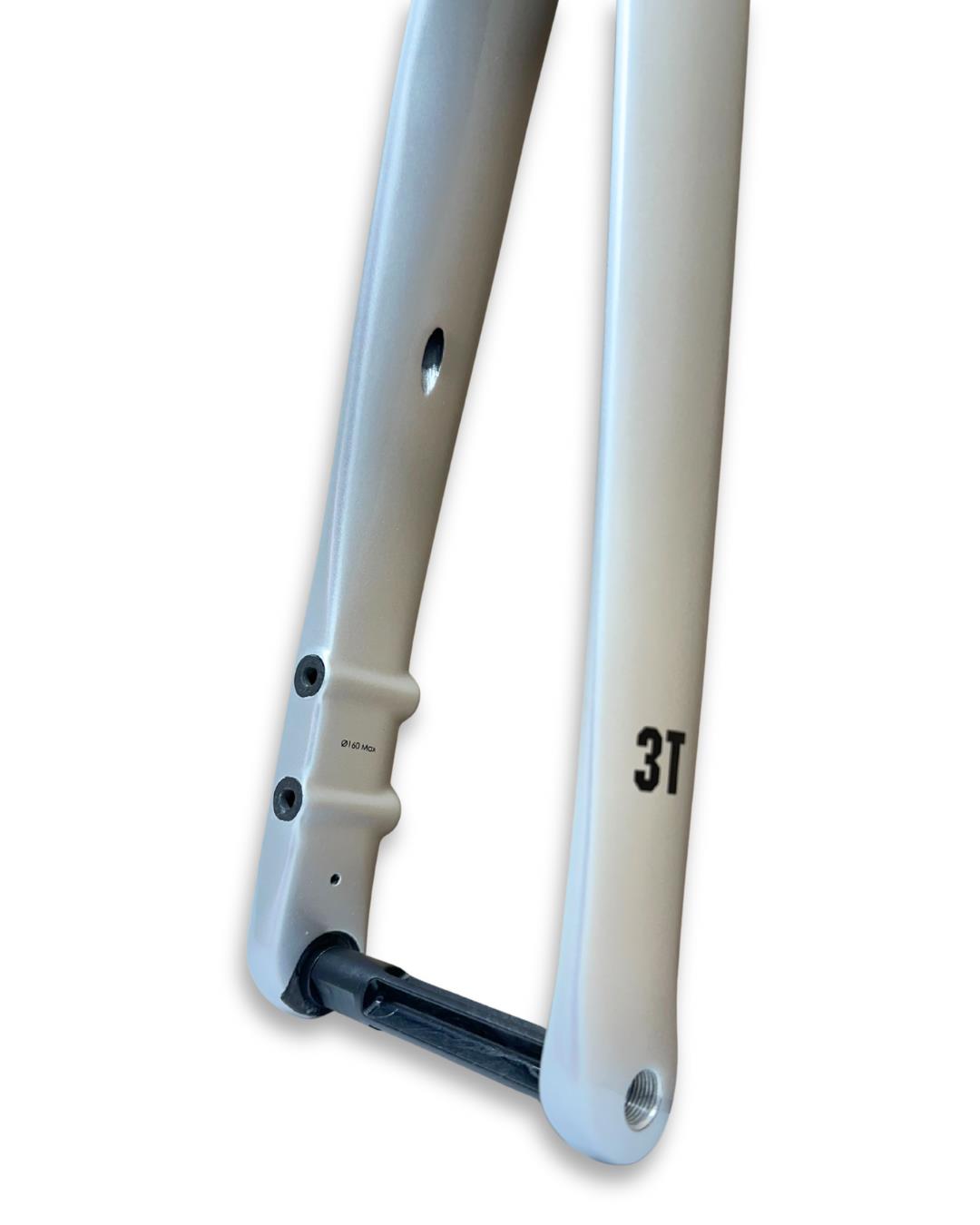

• Axle Type: 12×100 mm thru-axle

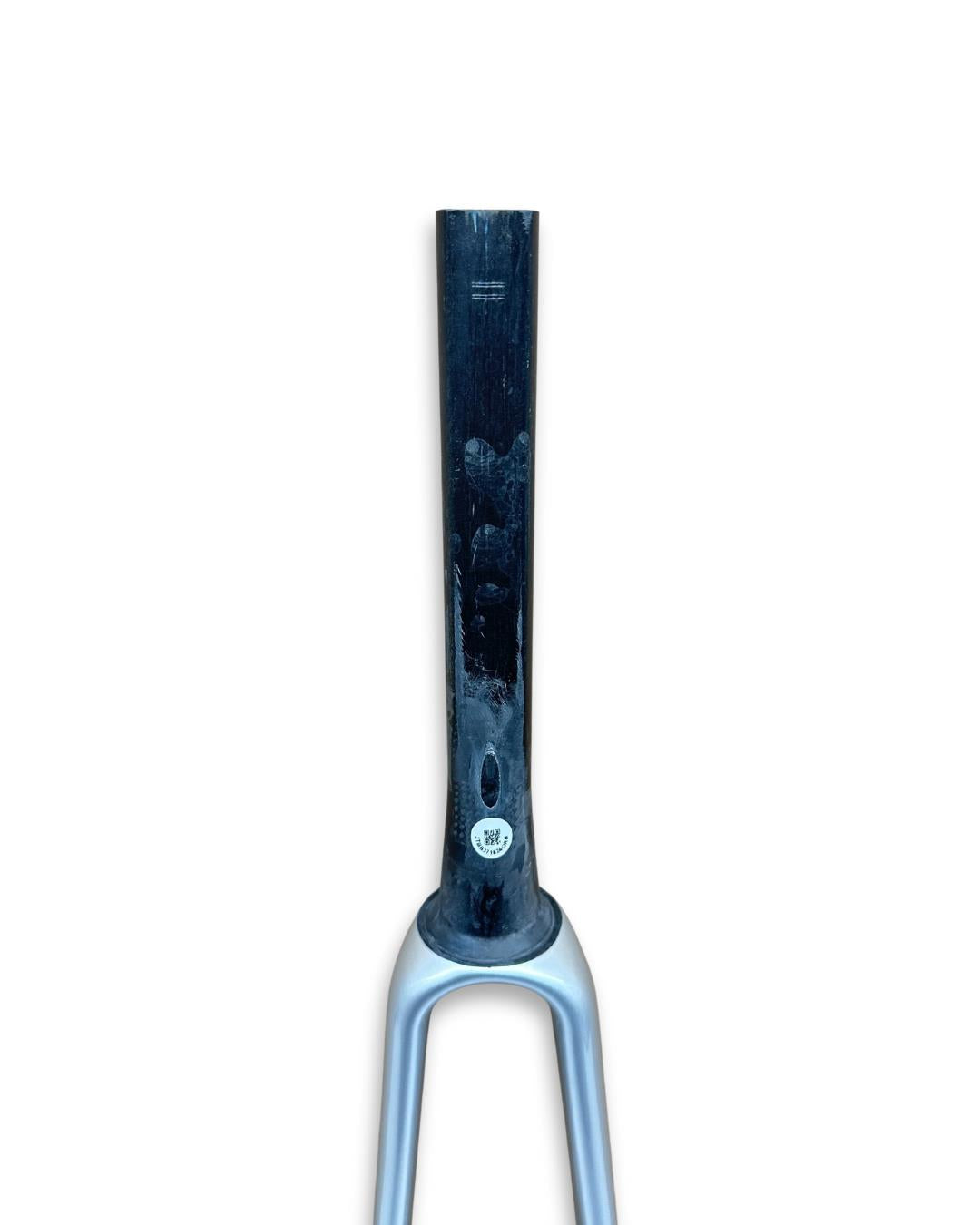

• Steerer: Tapered 1⅛″–1½″, front-flat D-shape for internal cable routing - 210mm

• Steerer Insert: Bonded alloy sleeve with threaded compression-bolt anchor

• Max RAM: 348 mm (tire radius clearance)

• Max WAM: 34 mm (tire width clearance)

• Finish: Gloss Chrome

• Condition: New, not in retail packaging
